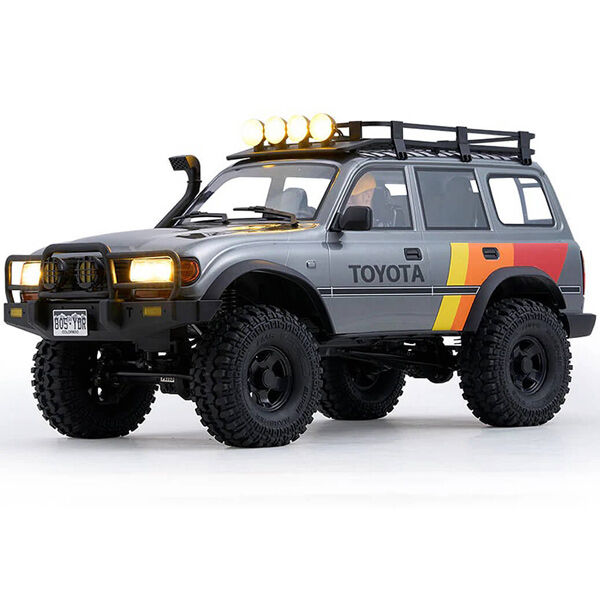

Authorised by Toyota, the 1/10 Land Cruiser 80 from FMS Models adopts the FCX10 crawler chassis, which faithfully provides the off road performance of the original car.

To ensure durability, the body is moulded in a PC material and is equipped with mirrors and waders. Through the transparent windows you can see a detailed driver figure, exquisite dashboard and cockpit interior. The roof is equipped with a luggage rack and four off road lights, while a climbing ladder is mounted at the rear. The vehicle comes pre installed with headlights, front turn signals, side turn signals, rear turn signals, reverse lights and other lighting components. The bodyshell uses a magnetic interface to draw power from the chassis, allowing the lights of the entire vehicle to be activated with a single button on the remote control. Additionally, pre installed fenders keep mud from spilling onto the body and chassis.

The whole chassis adopts the mainstream middle front power layout with four link suspension. The mid front motor and transmission, as an integral unit, have a lower centre of gravity, resulting in a lower roll centre and a reduced likelihood of rollovers. Meanwhile, metal geared waterproof servos placed to the side of battery compartment are responsible for switching high and low speeds.

In terms of convenience and daily maintenance, FMS has given this good consideration. The battery compartment can be flipped back or “quick release”. The electronic equipment is concentrated within the middle of the chassis, providing convenient maintenance, removal or replacement. FMS have innovatively designed a knob type quick release structure, and at the same time, the power and signal cables of the lights are perfectly integrated with the magnetic module.



Features

TOYOTA authorised car body

Detailed interior

Rich lighting effects

LC80 exclusive wheel hub

Offroad front bumper (daytime light included)

High and low speed transmission

Solid axle

Quick release structure (patented)

Magnetic light control

Metal height adjustable shock absorber

Metal gears

Full ball bearing



What's In The Box

1 x 1:10 FCX10 LC80 Toyota Land Cruiser 80 RS

1 x 2.4GHz MG6 Radio

1 x 2-in-1 R6D Receiver / 60A ESC (installed)

1 x Product Manual



What You Need (Not Included)

4 x AA Batteries for Transmitter

Battery & Charger for Kit (Recommended 2S 5000mAh, 3S 5000mAh XT60 plug)



Product Specifications

Product Size: 572*251*288mm

Steering Type: Front 2WS

Drive System: 4WD

Waterproof Class: Splash-proof

Motor: 550 32T Brushed Motor

Bearing: Full Bearing

Driving Speed (Low & High Gear): 10km/h / 22km/h

Steering Servo: 25KG Metal Gear 25.5Kg.cm (Waterproof)

Shift/Differential Servo: 13g Metal Gear servo

Remote Distance: 150m in clear space

Battery Compartment Size: 140*47*40mm

Play Time: 30min (3S 5000mAh 35C)

Wheel Base: 325mm

Tread: 203mm

Tyre Size: D: 120mm, W: 46mm

Wheelhub Size: D:66mm, W: 26mm

Wheelhub Adaptor Size: 12mm

Ground Clearance: 76mm

Approach Angle: 51°

Departure Angle: 42°

Breakover Angle: 55°

Maximum Steering Angle: 45°

Maximum Climbing Angle: 60°(artificial turf)

Motor Gear Pinion: 10T

Motor Gear Pitch: 0.8P

Spur Gear Pinion: 47T

Spur Gear Pitch: 0.8P

SKU FMS11042RSGY-SP
Brand FMS
