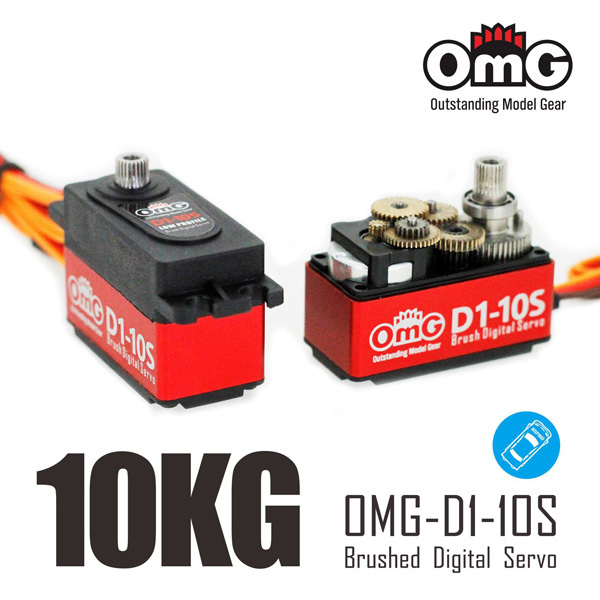

Special design for 1:10 RC car, low profile, aluminium brushed low voltage servo, middle cover in metal, top & bottom cover in plastic, metal gear. Entry level Servo

Operating voltage: 4.8-6.0V

Operating speed: 4.8V-0.085sec/60°

 6.0V-0.074sec/60°



Stall torque: 4.8V-10kgf.cm(139oz-in)

6.0V-12kgf.cm(167oz-in)



Gear Material: Stainless steel

Horn gear spline: 25T Φ5.9

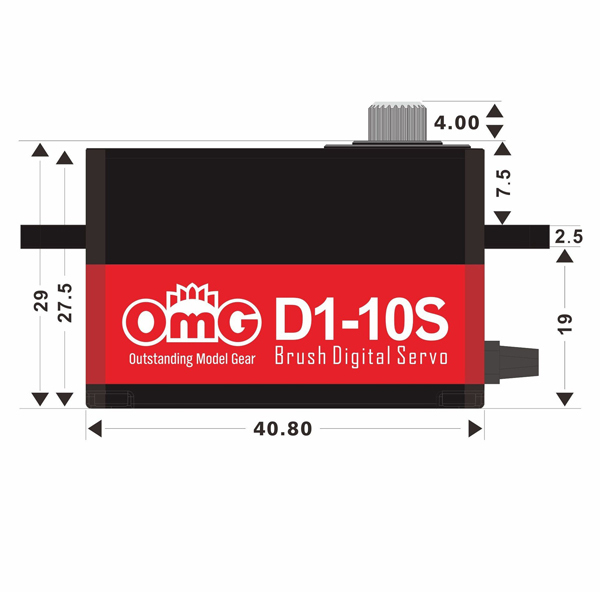

Size: 40.8x20x26mm(1.61x0.79x1.02in)

Case Material: Middle cover in full metal ,top & bottom cover in plastic

Weight: 52g

Bearing: 2BB



Motor type: Brushed

Operating Temperature: -15℃~+70℃

Operating travel: ≈180±10°

Neutral position: 1520μsec

Frequency: 1520uS

Refresh Rate: 333Hz

Pules width range: 500-2500μsec

Dead band width: 2μsec

Connector wire length: 180mm

Waterproof level: Dust & Water Splash Resistance

Programmable: No

SKU OMG-D1-10S
Barcode # 974405577767
Brand OMG
