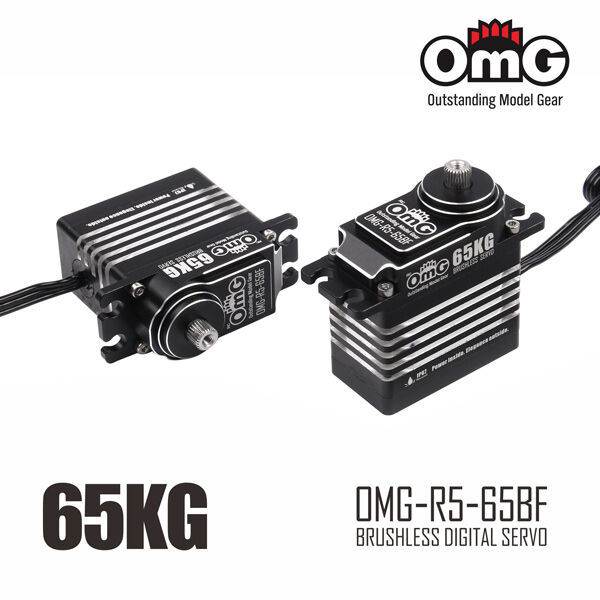

Standard size full metal waterproof IP67 brushless digital servo, inlaid with six ball bearings to prevent gear movement, better impact resisting with 2.5mm main axis and 2.0mm secondary axis.

Operating voltage:

5.0-8.4V



Operating speed:

7.4V-0.085sec/60°

8.4V-0.095sec/60°



Stall torque:

7.4V-60kgf.cm(833oz-in)

8.4V-65kgf.cm(903oz-in)



Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

Size: 1.59x0.83x1.65in

Case Material:Full metal (CNC)

Bearing:6BB

Motor type:Brushless

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:330mm

Waterproof level:IP67

Programmable:No



SKU OMG-R5-65BF
Brand OMG
