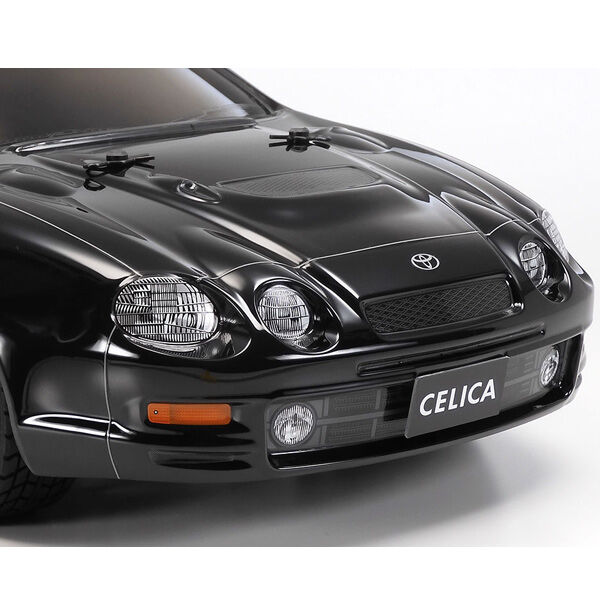

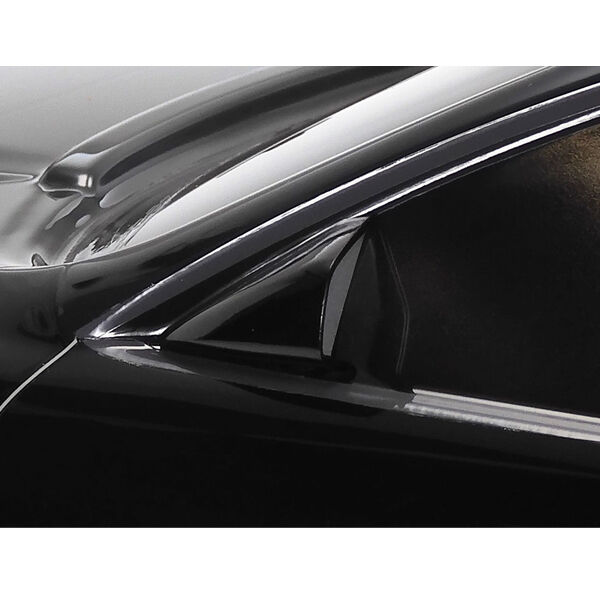

Toyota developed this high spec version of the sixth generation Celica with the aim of repeating in 1994 their global rally championship of the previous year. Now it appears as a radio control model assembly kit with a polycarbonate body recreating the car's classic form and separately moulded parts adding plenty of detail.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy to maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc shaped wheel hubs and stylish front bumper supports. Gun metal colour 10-spoke wheels use semi-pneumatic treaded tyres.



Specifications

Length: 451mm, width: 186mm, height: 134mm

Wheelbase: 257mm

Tyre width/diameter: 27/67mm (front & rear)

Bathtub type frame

Shaft driven 4WD Front/rear 4 bevel plastic differentials

3 piece steering tie rod

4-wheel double wishbone suspension

Front/rear friction dampers

Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately sold pinions)

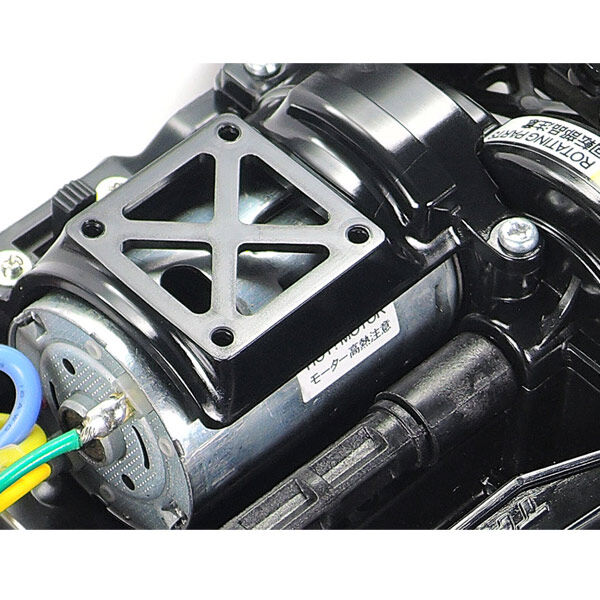

Type 540 motor



Needed to complete

2 channel R/C system w/ESC R6/AA/UM3 batteries for transmitter

Battery pack & charger

SKU T58743
Brand Tamiya
