Tamiya Dyna Head 6 X 6 (G6-01Tr)
SKU code: T58660
$439.00
This R/C model assembly kit creates the Dynahead 6x6. Its polycarbonate body is inspired by a cabover trial trucks particularly popular on the European scene, and designed by Takayuki Yamazaki. The boxy design features rear-hinged door motifs and has a wild look perfectly suited to the off-road. The model is based upon the 6-wheel drive G6-01TR, which offers extreme performance on tough surfaces and thanks to its long wheelbase can even negotiate slopes of up to 40 degrees
G6-01TR Chassis: Immense Traction
Reduction gears on each axle slow drive shaft rotation to give the 6-wheel drive G6-01TR chassis an overall gear ratio of 37.35:1, for immense traction, which along with its great ground clearance gives the ability to take on tough off-road terrain. It is based around a tough, slimline monocoque frame. Power is provided by a motor behind the front wheels, and transmitted to front, centre and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, centre and rear differential gears that provide superb traction and durability with the use of included diff putty. Double wishbone suspension is fitted with friction dampers, while black 5-spoke wheels are paired with 110mm diameter V-pattern block tyres. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.

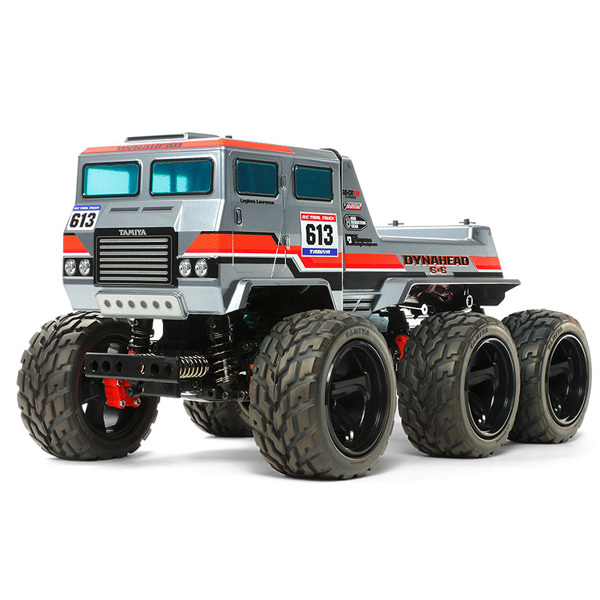

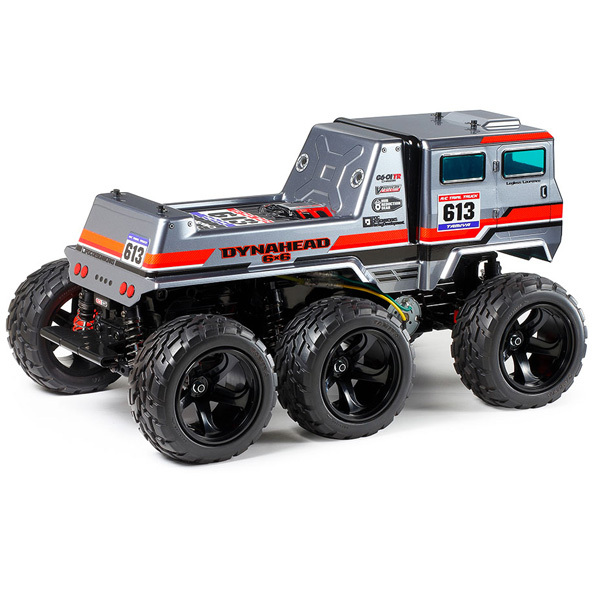

The polycarbonate trial truck-inspired body has ample character!
Marking stickers are included in the kit to add decoration to the body.

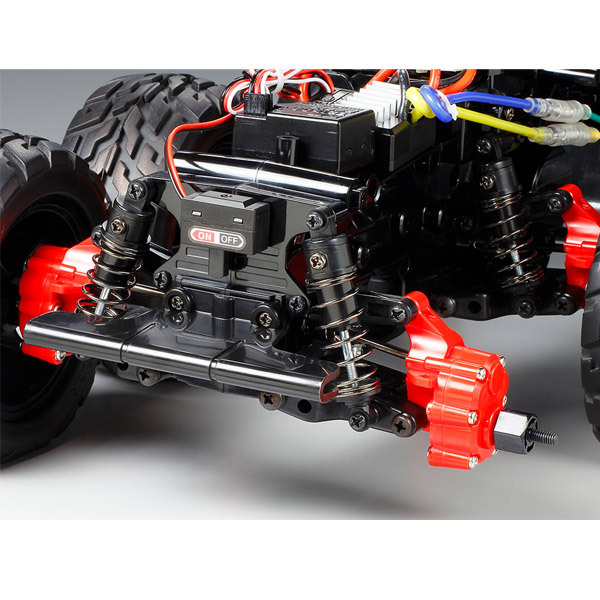

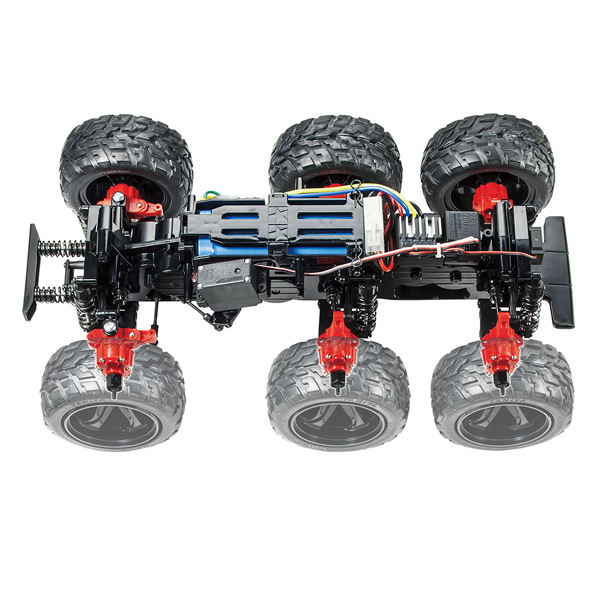

6-wheel independent double wishbone suspension uses friction dampers. Gearboxes are integrated into the chassis monocoque.
All 6 wheels are fitted with hub reduction units, which slow down drive shaft output for greater torque and immense traction.
6-wheel independent double wishbone suspension uses friction dampers. Gearboxes are integrated into the chassis monocoque.

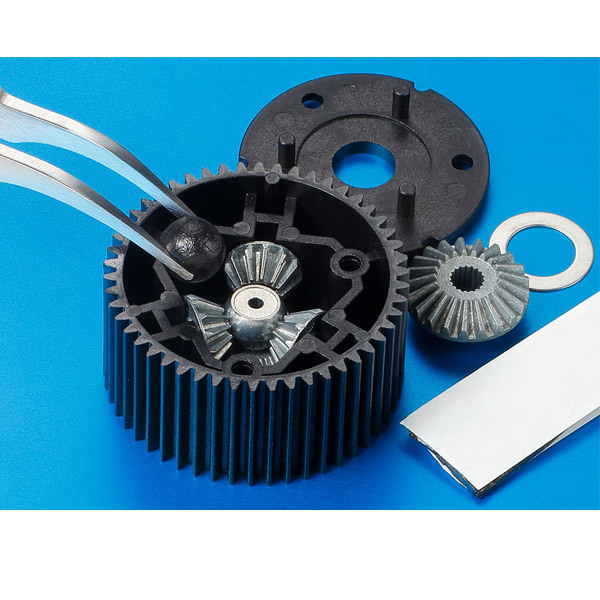

Diff putty is included in the kit for use in the gear differentials, contributing to superb traction for this big 6-wheeler.
Specifications
★Length: 428mm, Width: 256mm, Height: 222mm ★Wheelbase: 173mm + 126mm ★Tread: 209mm (Front, Centre and Rear) ★Tyre Width/Diameter: 50mm/110mm ★Monocoque Frame ★Gear-Driven 6WD ★3-Bevel Differential Gears ★2-Piece Steering Tie-Rod ★6-Wheel Independent Double Wishbone Suspension ★Gear Ratio = 37.35:1 ★Type 540 Motor ★Requires an Electronic Speed Controller (sold separately)
Separately required items to complete
★2-Channel R/C Unit with ESC ★Battery Pack & Charger ★R6/AA/UM3 batteries for transmitter
Paint and glue not included
| SKU | T58660 |
| Brand | Tamiya |
