To the Rescue!

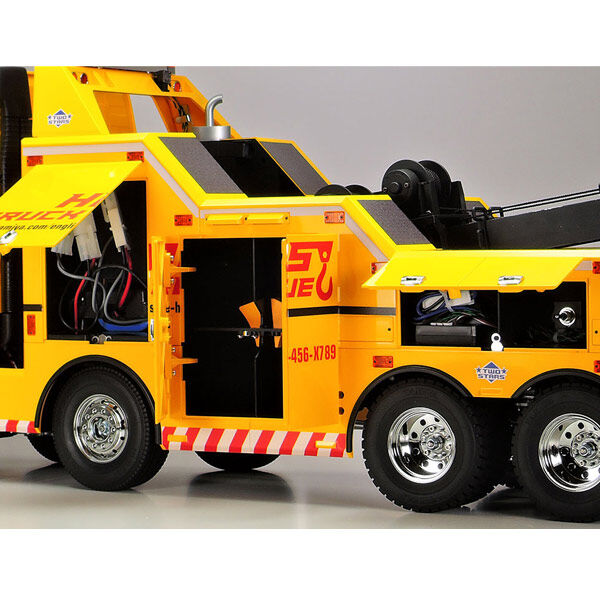

Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This R/C model assembly kit recreates the 750hp engine FH16 Globetrotter 750 8x4 tow truck from that range. The model has a realistic cab and body, the former featuring a photo etched front grille and interior details, the latter opening doors. Its fascinating towing mechanism uses plenty of metal parts and winch boom, underlift and outriggers are movable manually. The front mounted TR Mighty Tuned motor (35T) provides ample power to the two rear axles, via a three-speed transmission. Gear changes are also possible via transmitter controls, and the model can tow subjects such as 1/14 scale R/C tractor trucks.

The massive, stately form of this tow truck is captured with exceptional realism. You won't be able to wait to start towing

Stainless steel photo etched front grille parts add to the authenticity.

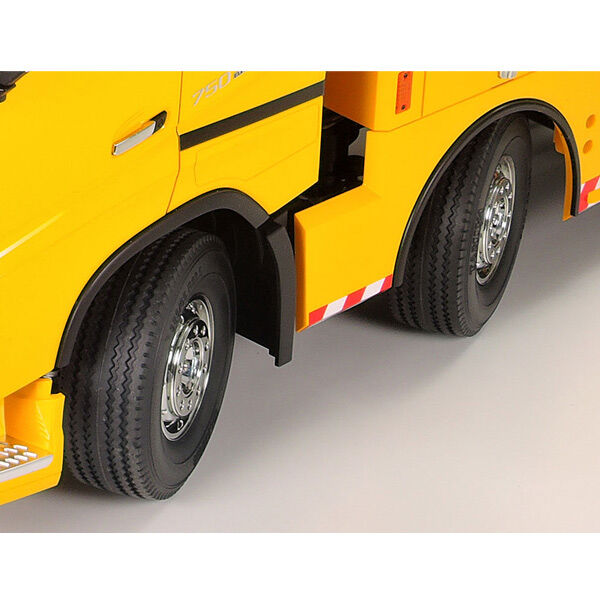

Both front axles are steered on this model, with a single servo used to turn the wheels. Wheels turn realistically at different angles.

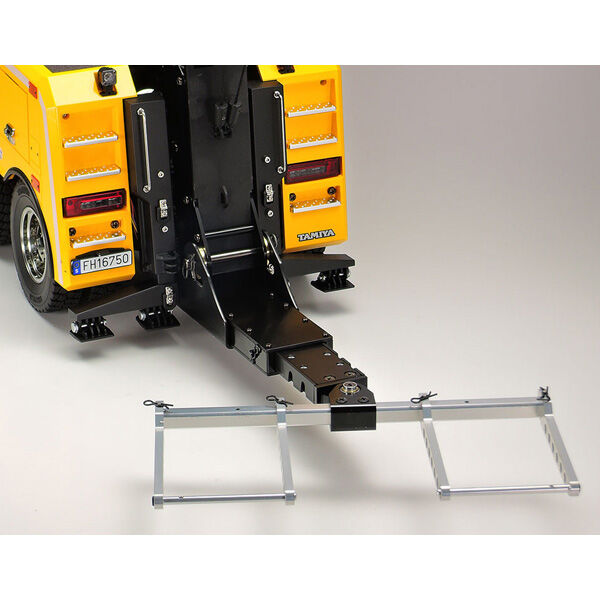

The underlift can be extended and retracted, and features adjustable forks. It turns on a joint to enable smooth cornering

Specifications

Length: 732mm, Width: 199mm, Height: 309mm

Weight (with R/C equipment and battery pack): Approx. 5.9kg

Wheelbase: 155 + 245 + 103mm

Tread: 155mm (Front), 138mm (Rear, Double Tyre)

Chassis: Aluminium & Polycarbonate Resin Ladder Frame

Suspension: Front/Rear Leaf Springs

Caster Angle: 0° (Front & Rear)

Camber Angle: 0° (Front & Rear)

Toe Angle: 0° (Front & Rear)

Dampers: Aluminium Dummy Dampers

Drivetrain: Rear Double Axle Drive

Transmission: 3 gear transmission (shifts operated via transmitter)

Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1

Diff. Gear: 3 bevel differentials

Motor: TR Mighty Tuned (35T)

Tyre Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear)

Separately required items to complete

4 Channel R/C System with slide trim levers and self neutral sticks

Servos x2

ESC or Multi Function Control (MFC) Unit

R6/AA/UM3 batteries for transmitter

Battery Pack & Charger
