Tamiya Landfreeder (CC-01) Shaft Driven 4WD ( Kit) 1/10
SKU code: T58579
$285.00

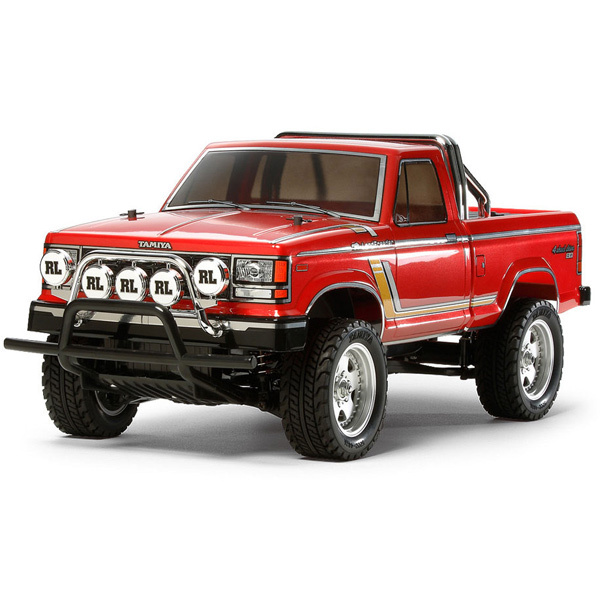

This R/C model assembly kit recreates the charismatic and powerful form of a 1980s 4WD pick-up truck, with great attention to detail. It features a realistic polycarbonate body with added metal-plated parts for fog lamps, grille guard and roll bar to give a grizzled and tough-looking finish. The shaft-driven 4WD CC-01 chassis is perfect for off-road driving, particularly when combined with the tread-pattern tires which are mounted on the model's flat-finish wheels.

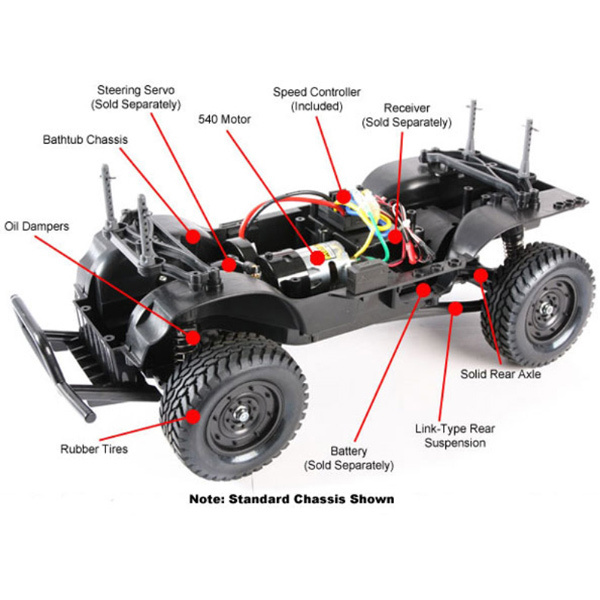

The All-Terrain CC-01 Chassis
The highly reliable and efficient full-time 4WD system features a midship motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked during assembly. The chassis suspension employs double-wishbone front upper I-arms and lower H-arms plus rear rigid suspension. With 4 CVA dampers in total fitted to the front and rear, there's enough cushion to take on even the roughest surfaces!
Specs and Features:
•Scale: 1/10
•Construction type : assembly kit
•Terrain use: on-road
•Drive-train: 4WD
•Drive type: gearbox
•Drive line: dog bone
•Differential type: gear
•Suspension: independent front/solid axle rear
•Steering mechanism: bell-crank
•Shock damper: oil-filled damper
•Shock damper material: plastic
•Tyre type: rubber
•Tyre tread: radial
•Body material: Polycarbonate
•Chassis material: plastic
•Electronic Speed Control (ESC): included
•ESC model: TEU-105BK
•LED Light buckets: no
•LED lights: no
•Motor: 540-brushed type
•Bearings: plastic bushing
•Adjustable camber: fixed
•Adjustable toe angles: front only
•Adjustable ground clearance: fixed
•Adjustable gear ratio: yes
•Adjustable wheelbase: fixed
•Adjustable track width: fixed
•Adjustable shock angle: fixed
•Special feature 1: Metal-plated parts for front grille guard and rear roll bar
•Special feature 2: Metal-plated wheels
•Special feature 3: Rear 4-link rigid suspension
•Length: 445mm
•Width: 193mm
•Height: 181mm
•Weight: 1330g
•Wheelbase: 242mm
•Tread Front and Rear: 163mm
•Gear Ratio: 1:14.67
Included:
•CC-01 LandFreeder (1 pc)
•540 Brushed Motor (1 pc)
•TBLE-02S ESC (1 pc)
•Decals (1 pc)
•Instruction (1 pc)
Requires:
• 2-channel radio gear
• 7.2 battery & charger
• Servo
• Paint and glue not included
| SKU | T58579 |
| Brand | Tamiya |
