A Customised 3-Axle Beauty!

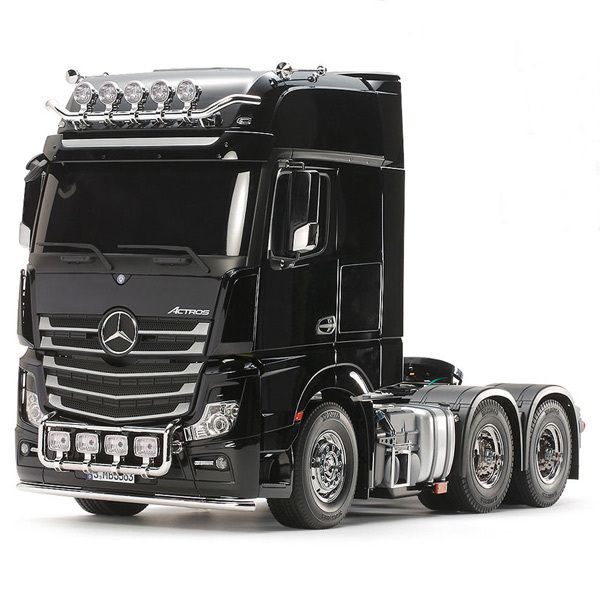

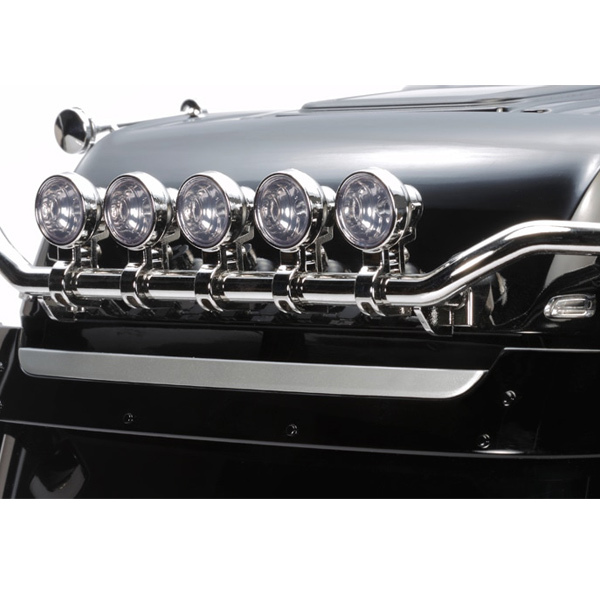

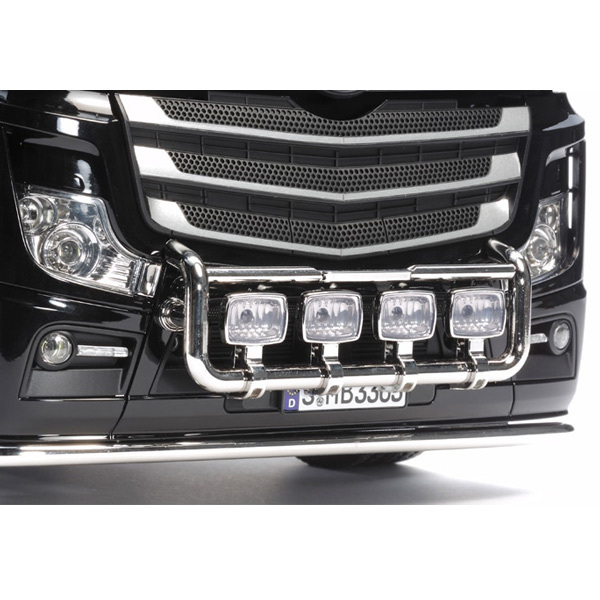

The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-litre turbocharged inline-6 engine capable of 630hp. The model's highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.

Specifications

Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg Wheelbase: 237＋103mm

Tread: 155mm (Front), 138mm (Rear, Double Tyre)

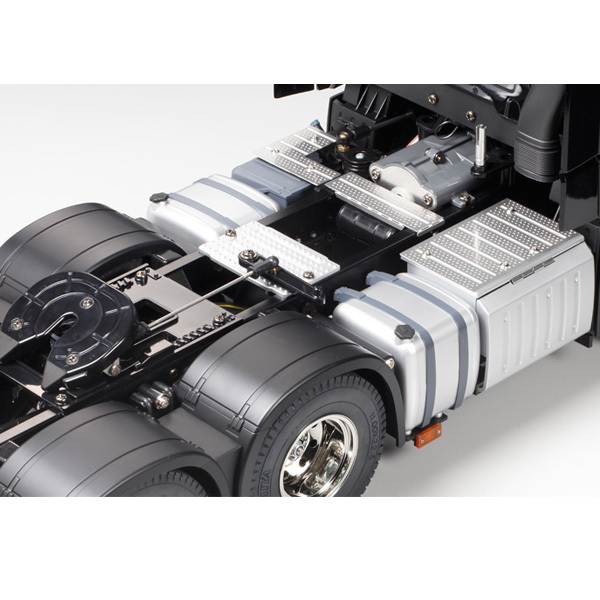

Chassis: Aluminum & Polycarbonate Resin Ladder Frame

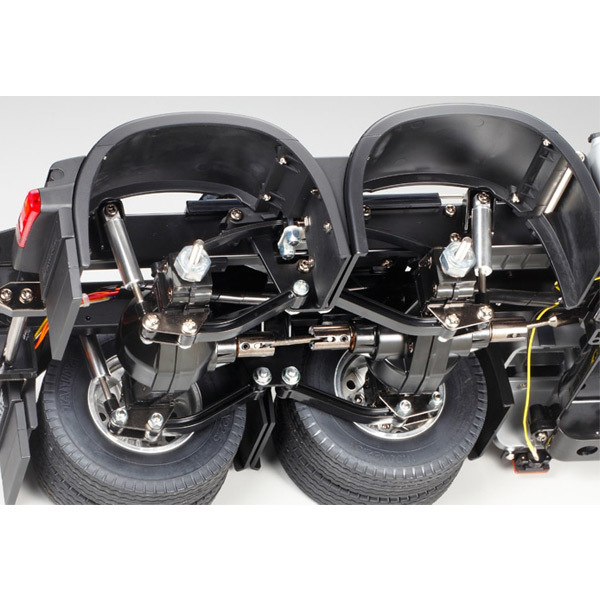

Suspension: Front/Rear Leaf Springs

Caster Angle (Front/Rear): 0°/0°

Camber Angle (Front/Rear): 0°

Toe Angle: 0°(Front & Rear)

Dampers: Aluminum Dummy Dampers (Front & Rear)

Drivetrain: Rear Double Axle Drive　

Transmission: 3-gear transmission (gear shifting operated via transmitter)

Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1

Diff. Gear: 3-bevel diff

Motor: Type 540

Tyre Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)

Separately required Items to complete:

7.2 Battery Pack & Charger

4 Channel Transmitter & Receiver

ESC

2 x Servo

AA Batteries

Optional: Tamiya multi function unit #56511

Paint and glue not included

Realistic Lights, Sounds, and Vibration

Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
