Tamiya RC Landfreeder Quadtrack (TT-02FT) 1/10
SKU code: T58690
$495.00
This assembly kit creates an R/C model off-road truck which shows high performance on poor surfaces. Its chassis is based upon the TT-02 shaft-driven 4WD unit, with superlative traction from its four individual tracks that helps it plow through snow, sand, mud and other testing conditions. Its 1980s pick-up truck style body is moulded in polycarbonate, with fog lamps, grille guard and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners help prevent dirt and the like from getting into the chassis and potentially causing damage.
Tracked 4WD Fun: the TT-02FT Chassis

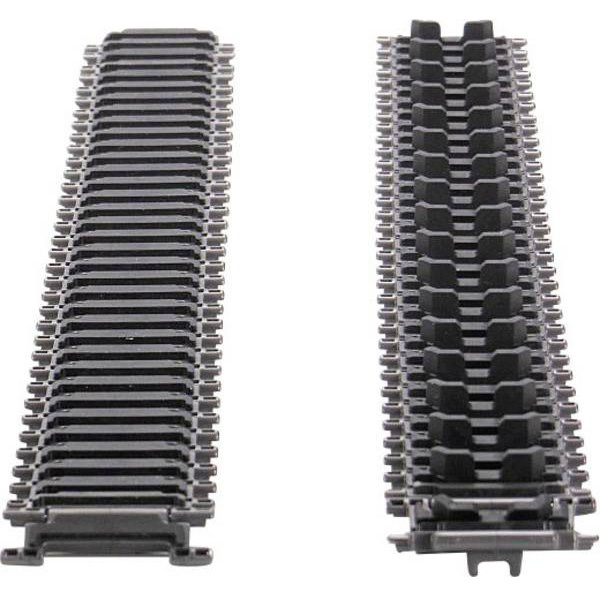

The TT-02FT chassis uses the shaft-driven TT-02 as a base, with track units in place of the four wheels. Each of the track units is attached to upper and lower suspension arms, and is powered via a drive sprocket that attached to the chassis drive shaft; they swing to allow superior contact with the running surface, and feature a sprung roller to allow easier negotiation of smaller obstacles. Plenty of ground clearance is on offer, too. Tracks are a plastic assembly type design with metal link pins, and give minimal power loss from friction for a smooth drive, even at lower speeds. Two types of link are included in the kit - standard, and jutting grouser designs - and can be used in tandem to customise your model's grip. The chassis features a CR-Tuned motor as standard.
Specifications
• Length: 425mm, width: 247mm, height: 199mm
• Wheelbase: 251mm
• Surface contact: 60mm/track
• Track width: 39mm
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel resin differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• CR-Tuned motor
• Electronic Speed Controller (ESC) is sold separately
• Paint and glue not included
Required to complete
• 2-channel R/C system w/ESC
• AA batteries for transmitter
• Battery pack & charger
