A faithful friend

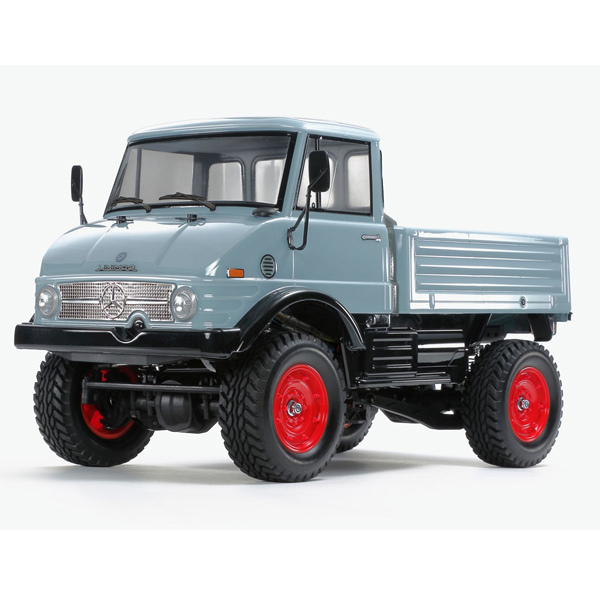

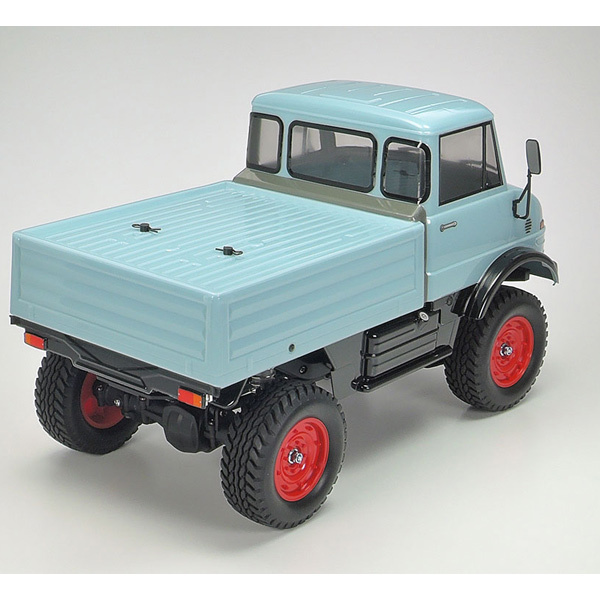

The Mercedes-Benz Unimog name is an acronym of the German "Universal-Motor-Gerat"; this R/C model assembly kit recreates the 406 Series vehicle that was a hit since its debut in 1963. A polycarbonate body recreates the distinctive form with curved hood and round headlights, with a separate metal plated depiction of the front grille for extra realism, plus separately moulded side mirrors and air intake.

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with eye-catching red dish wheels and grippy block pattern tyres.

Specifications
• Length: 384mm, Width: 196mm, Height: 224mm
• Wheelbase: 242mm
• Tread: 160mm (Front), 163mm (Rear)
• Tyre Width/Diameter: 33/90mm (Front & Rear)
• Ladder Frame
• Longitudinal Motor, Shaft-Driven 4WD
• 3-Bevel Differential Gears
• 4-Link Rigid Suspension (Front & Rear)
• Gear Ratio = 17.33:1 (using kit-standard 16T pinion)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately
• Paint and glue not included

Required to complete
• 2-channel R/C system w/ESC
• AA batteries for transmitter
• Battery pack & charger

SKU T58692
Brand Tamiya
