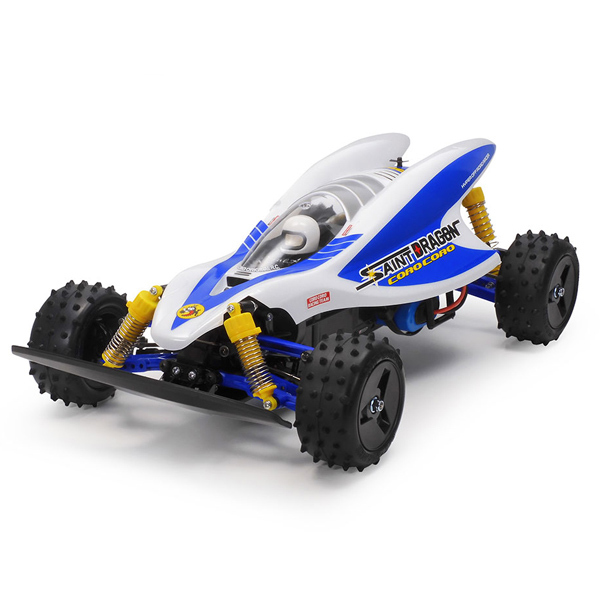

This R/C assembly kit recreates the 4WD buggy Saint Dragon which was the main model of a popular 1980s Japanese comic. The chassis consists of a tough bathtub frame plus front and rear gearboxes with suspension attached. 4-wheel double wishbone suspension uses CVA oil dampers for a superior ride, and a front stabiliser for a firm setup. The stylish body is moulded in polycarbonate and pre-painted white, just requiring application of stickers to finish it.

Efficient Shaft-Driven 4WD

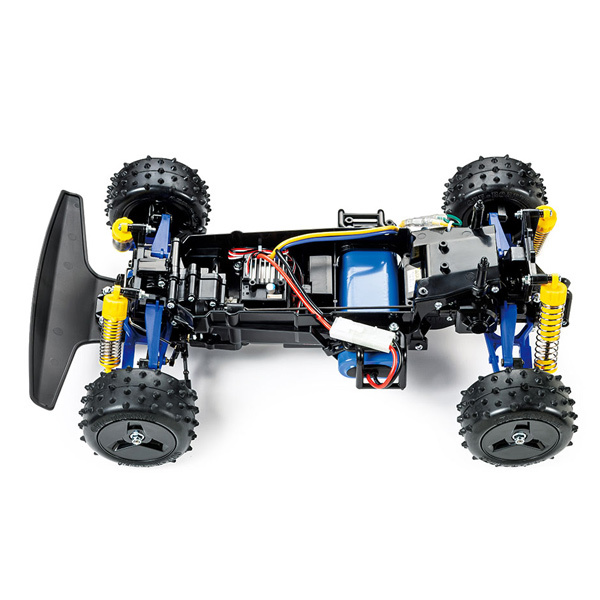

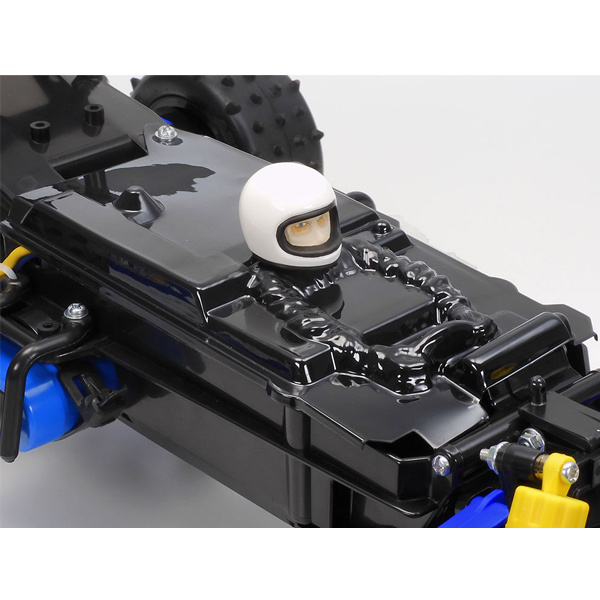

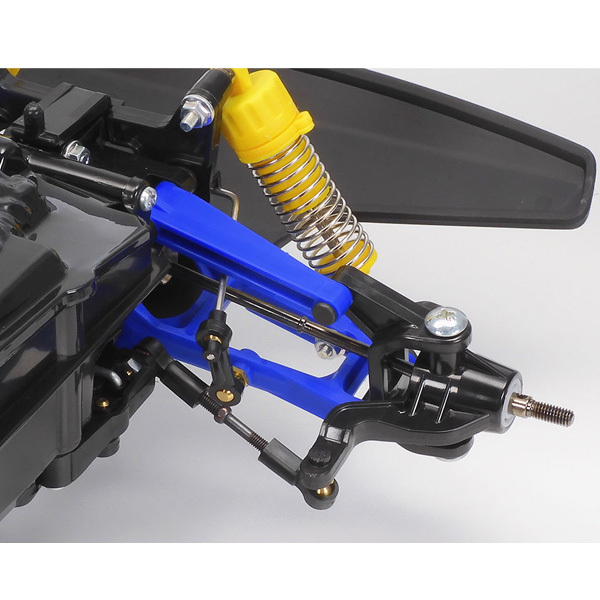

The chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilises upper "I" and lower "H" arms, and offers a ground-hugging drive. CVA oil dampers and a front stabiliser contribute further to an excellent drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminium motor mount for superior heat dissipation.

Specifications
• Length: 390mm, Width: 240mm, Height: 135mm
• Wheelbase: 260mm
• Minimum ground clearance: 23mm
• Tread: 203mm (front), 194mm (rear)
• Bathtub frame
• Tyre width/diameter: 38/83mm (front and rear)
• Shaft-driven 4WD
• 3-bevel differential gears (front and rear)
• 3-piece steering tie-rod
• 4-wheel independent double wishbone suspension
• Gear ratio = 7.68:1
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately
• Paint and glue not included

Separately Required Items
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

Paint not included

SKU T47459A
Brand Tamiya
Shipping Weight 2.1000kg
Shipping Width 0.340m
Shipping Height 0.140m
Shipping Length 0.500m
Shipping Cubic 0.023800000m3
