Return of the Frog!

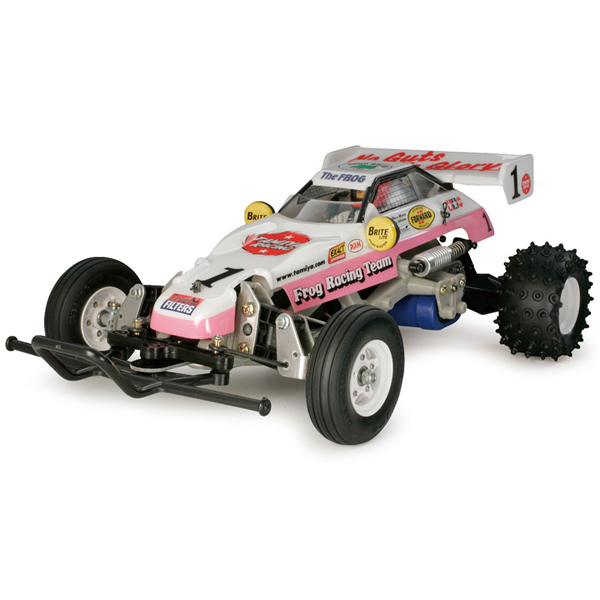

First introduced in 1983, the 2WD racing buggy Frog made a huge splash with its eye-catching design and high performance running. The Frog now makes a comeback, updated for a new age, but with its basic structure essentially unchanged. Preserving its characteristic space frame, the oil dampers for trailing-arm type rear suspension have been updated to diaphragm type. Rear drive shaft features dogbone type joint for secure power transmission. Sleek polycarbonate body remains the same, while 3-piece wheels feature front grooved and rear spike tyres for excellent off-road running.

2WD Chassis Packed with Innovation

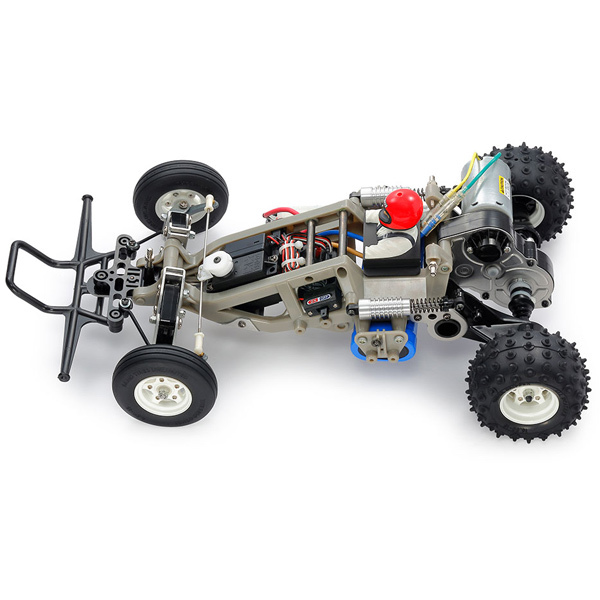

Electric R/C racing buggy features ABS space frame and nylon suspension and bumper for a lightweight yet rugged form that is perfect for off road running. Battery is held in ultra-low position, giving this car the stability and weight balance to handle rough terrain and wild jumps. Advanced 4-wheel independent suspension composed of front double wishbone type featuring in-board spring and durable steel radius arm. Rear trailing arm type features horizontally mounted aluminium cylinder oil dampers for effective shock absorbtion. Sealed differential gearbox ensures high speed cornering, while full gearbox ball bearings and 3-step gear ratio secures maximum transmission efficiency.

Features

• Chassis: ABS resin
• Drive: Two wheel rear drive
• Motor: Mabuchi RS540SH stock motor with attached bullet connectors
• Bearings: Four 5x11 bearings in the gearbox and 5x11 plastic bushings
• in the rear axle carriers and front wheels

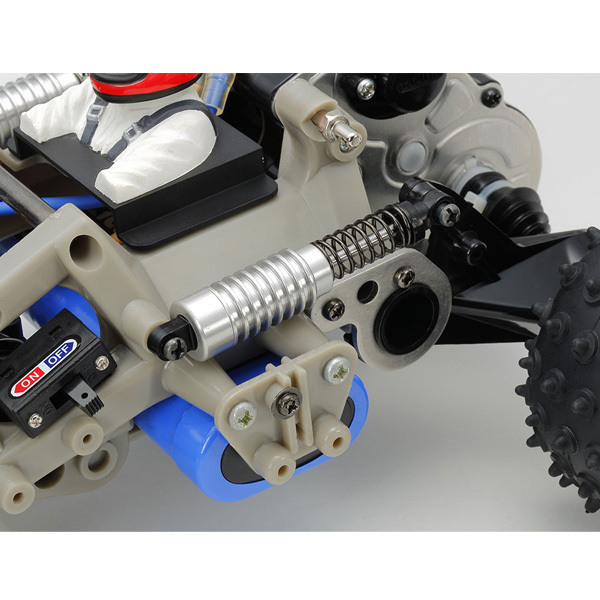

• Shocks: Two rear horizontal mounted, aluminium body, oil-filled
• Body: Clear Lexan buggy type with clear rear wing

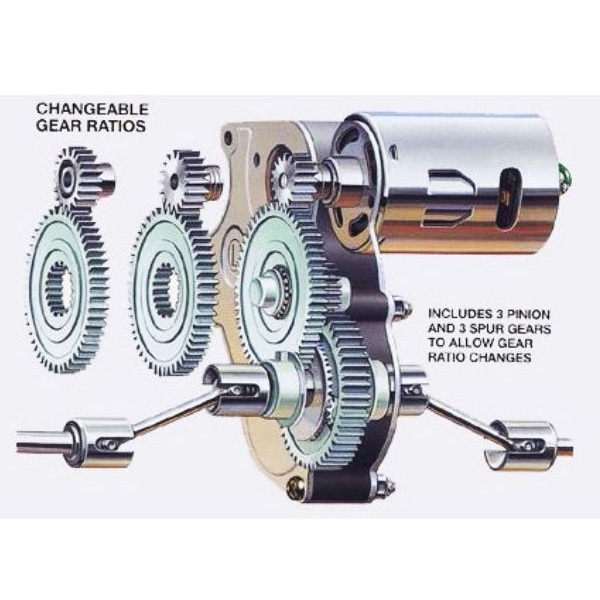

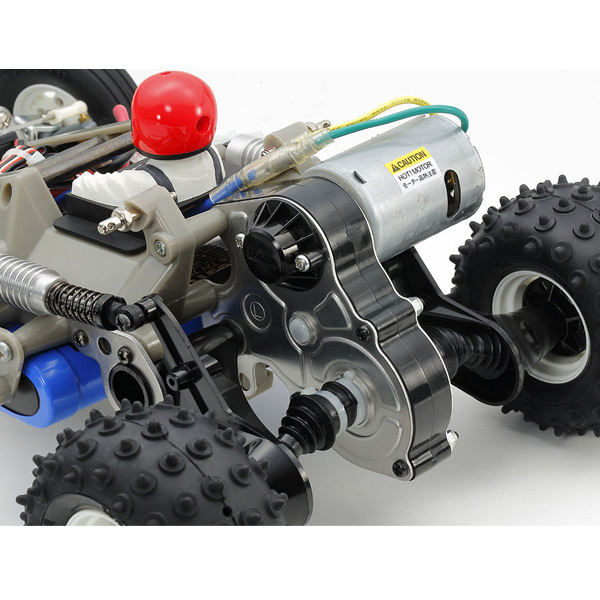

• Gearbox: 4 gear diff (pinion drives spur, spur drives drive gear, drive gear drives diff gear)
• Differential: Plastic bevel gear type
• Transmission: Single speed
• Pinion gears: 16 tooth, 18 tooth and 19 tooth included
• Wheels: 1.4" front, 1.6" rear, realistic 3-piece, white in colour
• Tyres: Ribbed racing front, high-grip rear spiked
• Bumpers: Front plastic

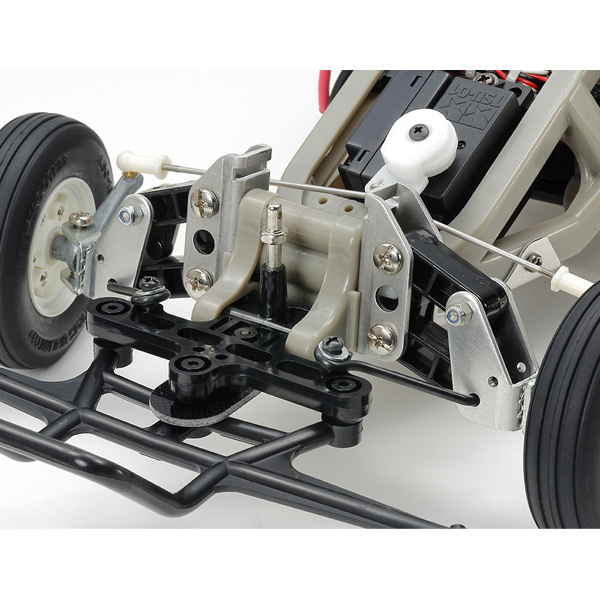

• Suspension: Inboard spring type front suspension
• Camber Tie Rods: Non adjustable

• Steering Tie Rods: Adjustable
• Steering: Steering rods attach to servo saver and knuckle arms
• Servo Saver: Included
• Driveshafts: Re-designed dog bone style with rubber boots

Includes

• Tamiya Frog Buggy w/two horizontal mounted friction type rear shocks,
• 540 size motor
• Body
• Tyres
• Wheels
• Front bumper
• 16,18 & 19 tooth pinion gears
• 49, 50, & 52 tooth spur gears

Required to complete

• Transmitter & receiver
• Battery
• Charger
• PS Paint
• Tools to assemble
• ESC
