A True Legend

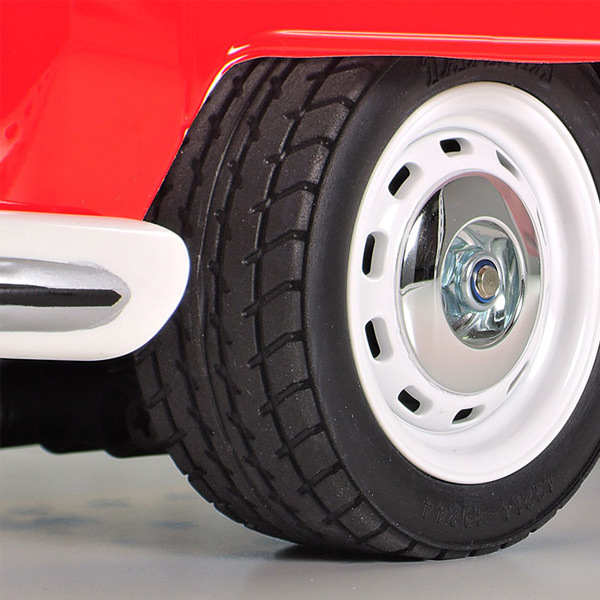

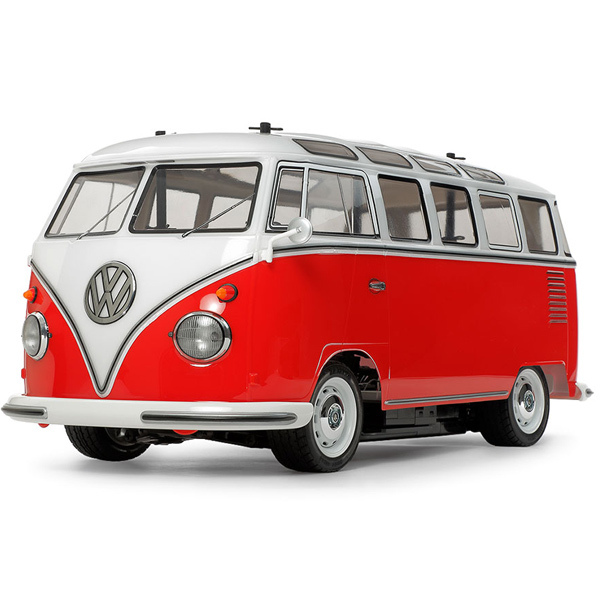

This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tyres, it is mounted on the rear-wheel drive M-06 chassis.
Great RR Performance from the M-06

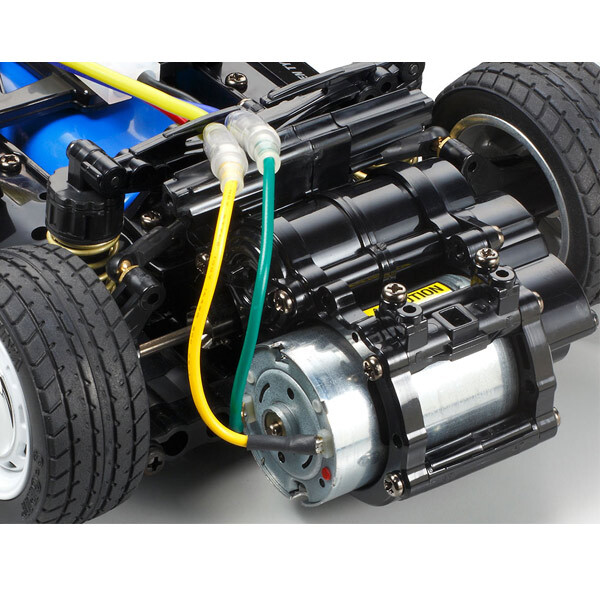

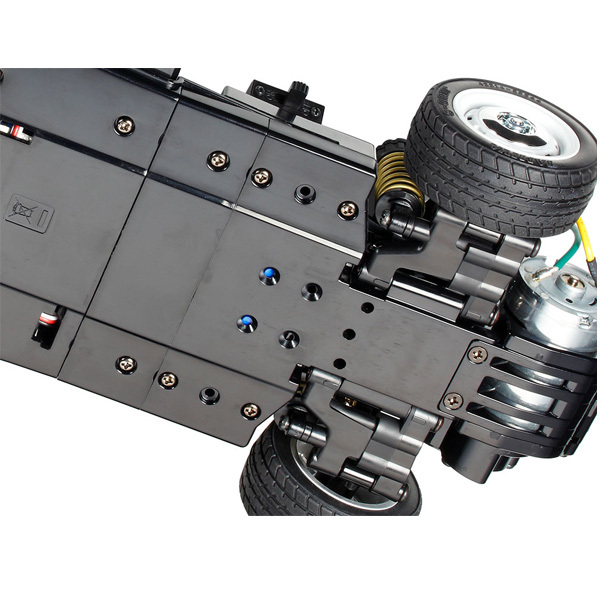

The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low centre of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.
Specifications
• Length- 426mm Width- 195mm Height- 177mm
• Wheelbase- 239mm
• Tread (F/R)- 138mm
• Rear-Motor, Rear-Wheel Drive
• 3-Bevel Differential Gear
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• F/R Friction Dampers
• Gear Ratio - 5.8:1
• Tyre Width/Diameter (F/R)- 25mm/59mm
• Type 540 Motor
• Requires an Electronic Speed Controller (sold separately)

Separately Required Items
• 2-Channel R/C System w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
• Paint and glue not included
SKU T58668
Brand Tamiya
